PD04 Panic Button (Bluetooth Enabled) – Setup & User Guide

Overview

The PD04 Panic Button is the next evolution in workplace safety technology. Designed for durability, seamless Bluetooth pairing, and dependable performance in real-world operational environments, the PD04 delivers improved stability, longer battery life, and easier pairing compared to previous lanyard-based devices.

What’s Included in the Box

Please confirm the following items are included:

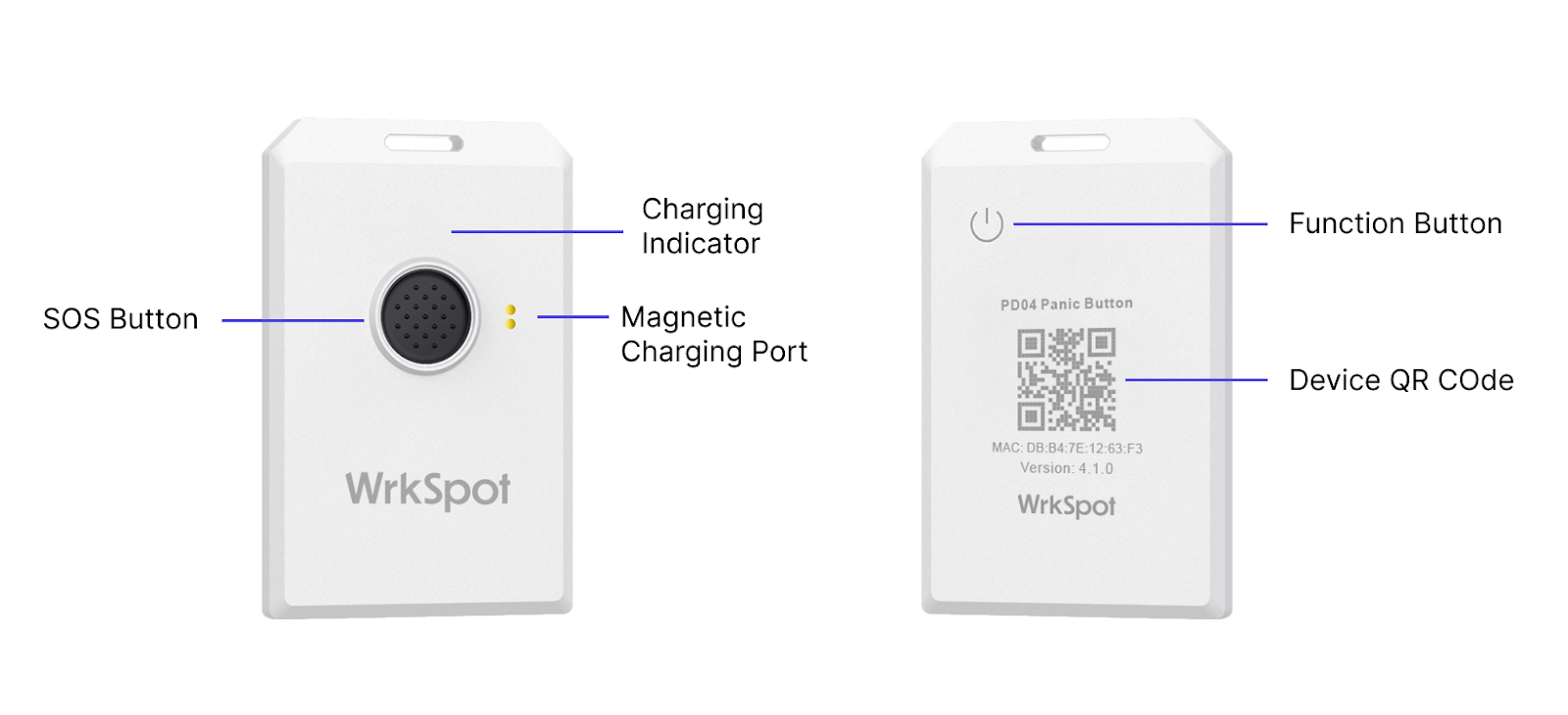

• PD04 Panic Device
• Magnetic USB Charger
• Lanyard

If any components are missing, contact support before proceeding.

Charging the Device

Step 1: Connect the Charger

• Attach the magnetic charger to the back of the device.
• Plug the USB end into a power source.

Charging Indicators

• Green light blinking every 2 seconds → Device is charging.

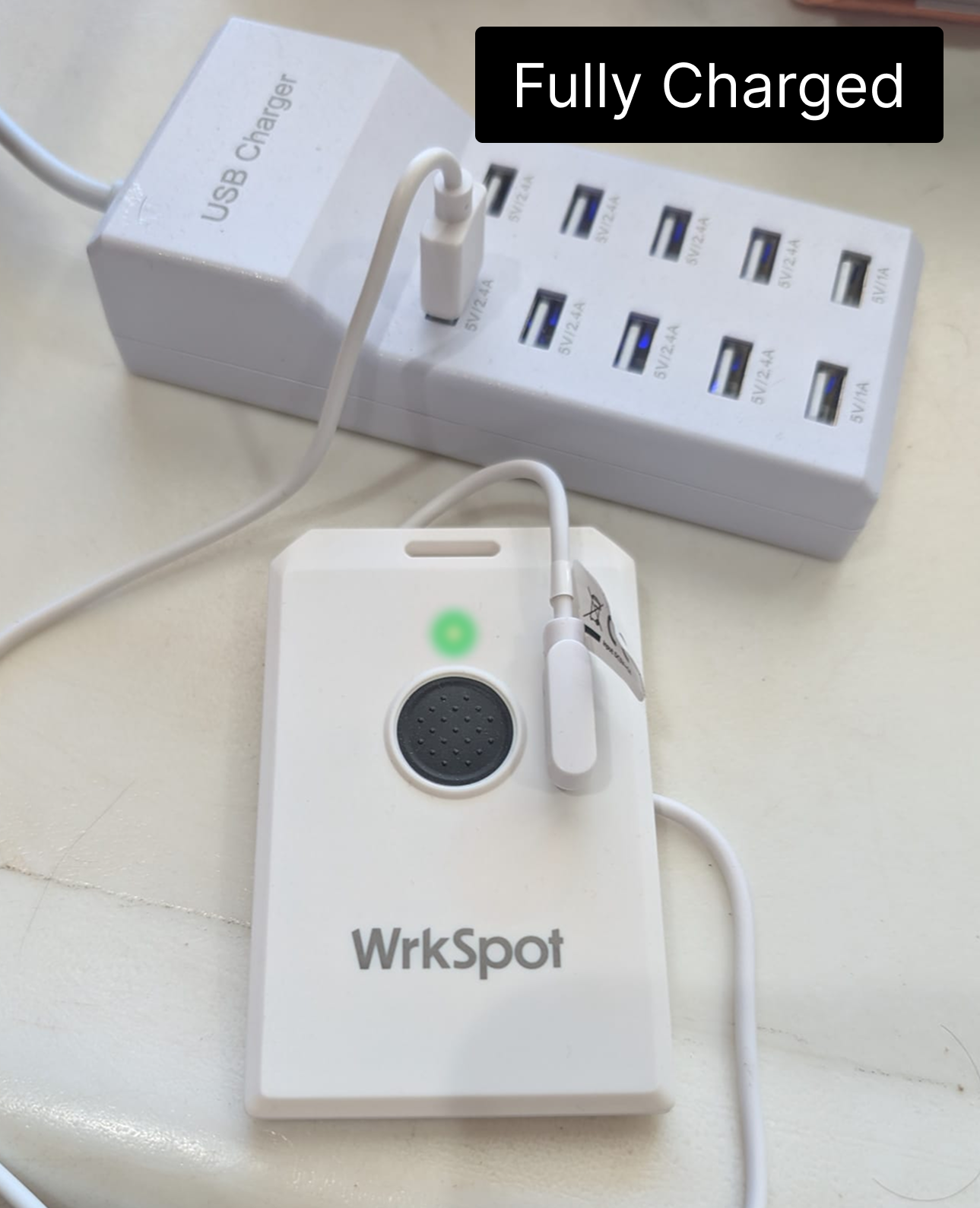

• Solid green light → Device is fully charged (remains on until unplugged).

Charging Details

• Charging Time: 2 – 2.5 hours
• Battery Life: 10 – 12 days (average use)

Important Safety Precaution

Do not allow the two metallic contacts on the charger cord to touch each other, as this may cause a short circuit and damage the charger.

Turning On the Device

• The device automatically turns ON once fully charged.
• To verify it is powered ON:
  • Press the Function Button once.
  • If powered ON, the green light will blink once.

If no green light appears:

• Connect the device to the charger. It will power on automatically.

Pairing the PD04 Device

Follow these steps within the WrkSpot mobile app:

1. Tap the Pair Icon.
   • The icon will not be highlighted if the phone is not yet paired.

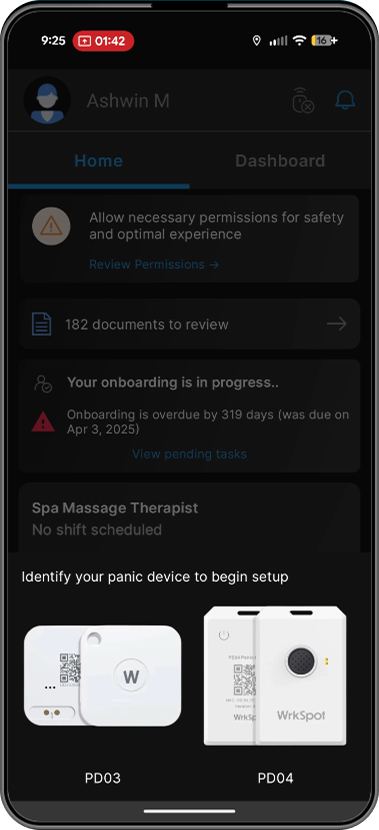

2. Select the device type:
   • Choose PD04.

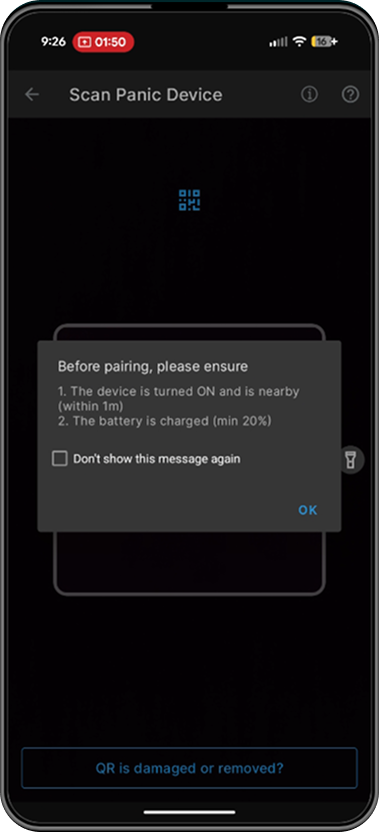

3. Scan the QR code on the device.
4. Complete the pairing process.

Pairing Will Not Work If:

• The device is already paired with another phone.
  • The device must be delinked before pairing to a new phone.
• The battery charge is below 20%.
  • Charge the device before attempting to pair.

Please check out this video

Pairing a PD04 device

Triggering a Panic Alert

• Gently press the black panic button.
• This action immediately triggers a panic alert in the system.

Notifications & Alerts

Device Unpaired

If the device becomes unpaired, the mobile phone will receive a notification.

Low Battery

When the battery drops below 20%, the mobile phone will receive a low battery notification.

Maintaining Device Health

To ensure optimal performance:

• Maintain a regular charging cadence.
• Avoid leaving devices uncharged for extended periods.
• Do not repeatedly allow the battery to fully drain.

Proper charging practices extend battery life and ensure operational readiness.

Panic Device Charging Best Practices

How to Confirm the Device is ON

• Press the Function Button once.
• Green light blinks once → Device is ON.
• No light → Connect to charger.
